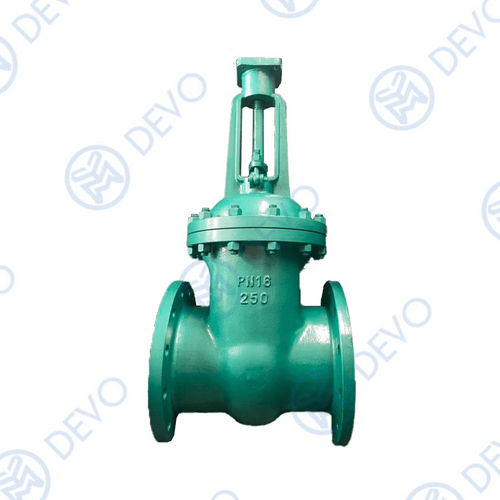

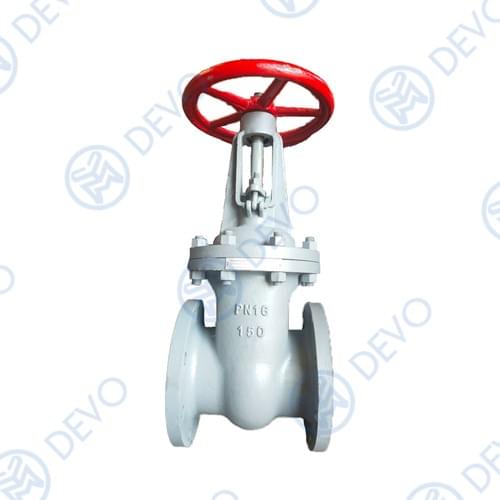

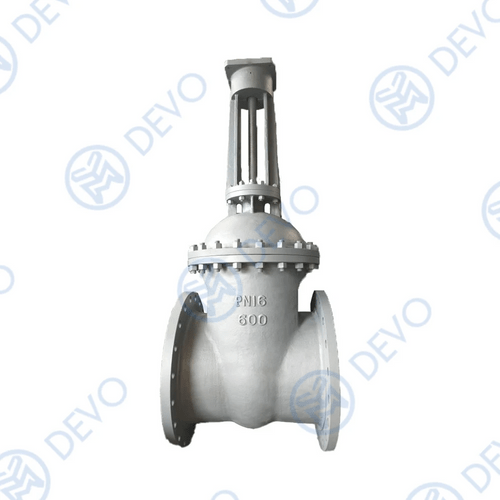

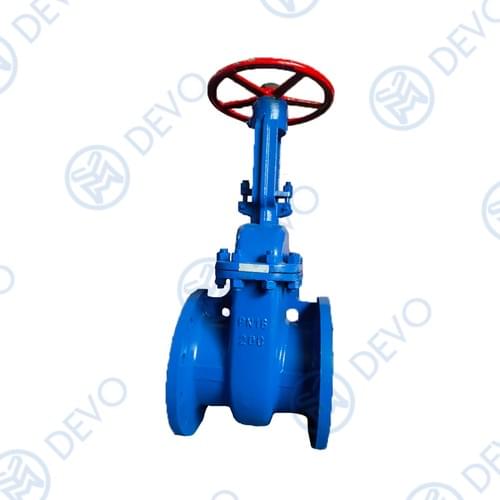

PN16 WCB 16Mn Gate Valve
Model Number: 30c41нж, 30c941нж, 30c541нж, 30лc41нж,30лc941нж,30лc541нж,
Port Size: DN50-DN1200
Warranty:12 months
Type: Gate Valves
Place of Origin: Wenzhou, China
Temperature of Media: -30° ~ +425°(WCB),-60° ~ +425° (Low temperature series steel)
Power: manual , for actuator, with gear box
Stem type: Rising type, Non-rising type
Media: water, steam, gas, oil…
Connection: flange type, welding type
Body material: WCB, Low temperature series steel
Seal Material: WCB+2Cr13 , SS
Color : Grey, Blue, or as request
Sample: Available
Port Size: DN50-DN1200
Warranty:12 months
Type: Gate Valves
Place of Origin: Wenzhou, China
Temperature of Media: -30° ~ +425°(WCB),-60° ~ +425° (Low temperature series steel)
Power: manual , for actuator, with gear box
Stem type: Rising type, Non-rising type
Media: water, steam, gas, oil…
Connection: flange type, welding type
Body material: WCB, Low temperature series steel
Seal Material: WCB+2Cr13 , SS
Color : Grey, Blue, or as request
Sample: Available
More Details

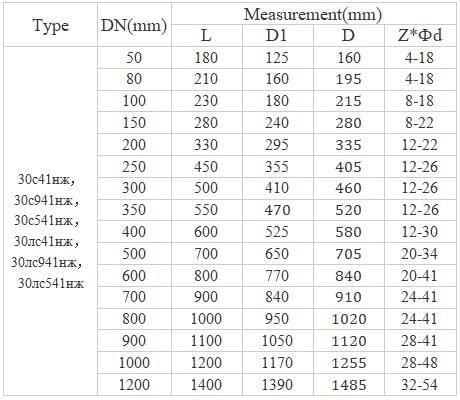

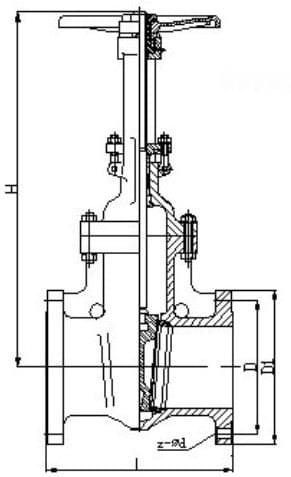

Outline and measurement
